Making a rope wrench

Mesquite

Treehouser
Joined
Jan 22, 2022
Messages
276
Location
Tucson AZ!
After watching videos of Kevin making wood prototypes it got me thinking. Im going to make one to see if that is the route I want to go. Any input is welcome.

What kind of would wood you use?
What size hole would you make? I'm going to use it on some samson hyperclimb.


Jonny

Treehouser
Joined
Sep 29, 2018
Messages
3,117
Location
Buffalo, NY

That thread is about making a Rope Wrench from a hinge.

There’s a few different CMI pulleys that allow one to move the sheave to a different hole and use a Rooe Wrench Slic pin, then just gotta figure out a tether. Here’s mine, works great.
3546052C-6E57-459F-83B9-44C92938B84C.jpeg 762C4D3A-642A-4296-ABF1-969E272E8095.jpeg


Mesquite

Treehouser
Joined
Jan 22, 2022
Messages
276
Location
Tucson AZ!
  • Thread Starter Thread Starter
  • Thread Starter Thread Starter
  • #6
Is the rope wrench slic pin different than the notch quickie slic pin?

Where did you get your slic pen?


Jonny

Treehouser
Joined
Sep 29, 2018
Messages
3,117
Location
Buffalo, NY

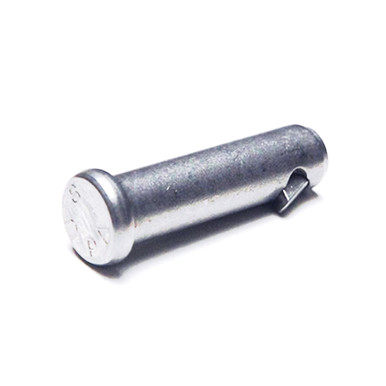

Yup, very different pins. I believe the pin diameter is different, the pin length is definitely different, the Quickie is for primary life support, so it has 2 separate cotters. The Rope Wrench has just 1 cotter. The Wrench is a part of a life support system, but when used properly, if it was to fail, it wouldn’t drop you, you just wouldn’t be able to descend. The Wrench just takes a bunch of friction away from the hitch. The Rope Runner has double cotters too, if a pin fails on that, the climber falls.


Fun fact; I thought “ Slic pin” was just a neat name, but turns out it stands for “ Self Locking Internal Cotter”


Jonny

Treehouser
Joined
Sep 29, 2018
Messages
3,117
Location
Buffalo, NY
Oh by the way, I got 40 or so single cotter Slic Pins that I got from a site’s clearance section, so no returns. They’re too skinny for the wrench, I can check the actual diameter and length. I’ve no idea what I could ever need them for now, so if anyone wants a couple, let me know.

I got a (1/4” I think) D shackle that they fit with, and I think they’ll still fit fine if I drill the threads out of the shackle… still not very useful though. Single cotter means not for life support, and the shackle is too small to bother using it for any rigging application.


Mesquite

Treehouser
Joined
Jan 22, 2022
Messages
276
Location
Tucson AZ!
  • Thread Starter Thread Starter
  • Thread Starter Thread Starter
  • #10
If you could please post the width and length of the slic pins that help determine if they will work when ever is convenient that would be fantastic.

I knew I should have bought two pulleys from cmi last week. Fortunately they have free shipping with no minimum. I have really benefited from their cosmetic seconds the past couple of months.


Jonny

Treehouser
Joined
Sep 29, 2018
Messages
3,117
Location
Buffalo, NY
That’s right, forgot I sent a couple of those to you. Was having trouble finding my caliper, but they look to match up with 5/16” bolts.

So these pins aren’t going to work for any device or connector available on the market, but if you’re building a wrench from scratch, you could make the hole 5/16”.

A homemade mini-wrench would be cool with a Captain’s Hook or SRT capable lanyard. I don’t really use my lanyard like that, but I’ll keep it in mind. AJ / Moss on the Buzz has a thread going about it, this pic is his, and he’s put a lot of thought and work into various versions of this.


Mesquite

Treehouser
Joined
Jan 22, 2022
Messages
276
Location
Tucson AZ!
  • Thread Starter Thread Starter
  • Thread Starter Thread Starter
  • #13
So thank you for the offer jonny but i came up with something else that should work fine. But in real world, outside of running up and down the rope in my house if it doesnt work out for some reason i will ask you for a slic pin or two.

First pic is showing it in the shortest set up. I found a bolt that was smooth the perfect length and the wing nut makes for quik on and off. With using a slic pin while decending i would assume that the pin would spin. Does it matter if i tighten my bolt to not spin? Will that mess with rope? I bought a small chunk of pvc pipe and was thinking about making something to stiffen the whole thing up but after making it it seems good enough. Every time i advance it on the rope the wrech catches great.

In the third picture its set up in its long configuration which has enough room for a 5-6vt


Attachments

Last edited:

lxskllr

Treehouser
Joined
Jul 21, 2019
Messages
8,598
Location
MD USA
Spinning vs fixed will probably affect braking characteristics. Personal preference I imagine. I would guess a fixed bollard will technically wear rope faster, but not enough to make a big difference in a working rope. I'd favor ride characteristics over longevity.


Brocky

Treehouser
Joined
Aug 5, 2009
Messages
208
Location
Michigan
The slic pin doesn’t rotate under normal loads, the rope is too large to make it spin.
Some diy wrenches, top worked nice the time I tested it, a “what if” project. The bottom is a prototype of a midline attachable, I intend to use it more as just a descender for long drops while using the Sticht, it worked, but intentions are to make an aluminum one.


Mesquite

Treehouser
Joined
Jan 22, 2022
Messages
276
Location
Tucson AZ!
  • Thread Starter Thread Starter
  • Thread Starter Thread Starter
  • #16
wow, the top two are beautiful, is the middle one 100% wood? did you make that wood slic pin?

im assuming that the farther away, where the rope attaches to the wrench, from where the rope slides through the wrench the more force/friction the wrench should have


Brocky

Treehouser
Joined
Aug 5, 2009
Messages
208
Location
Michigan
Oak, walnut and cocobolo, with an aluminum stem with some accessory cord cover. The slic pin spins, but the plunger doesn’t work, didn’t want to get that technical.
